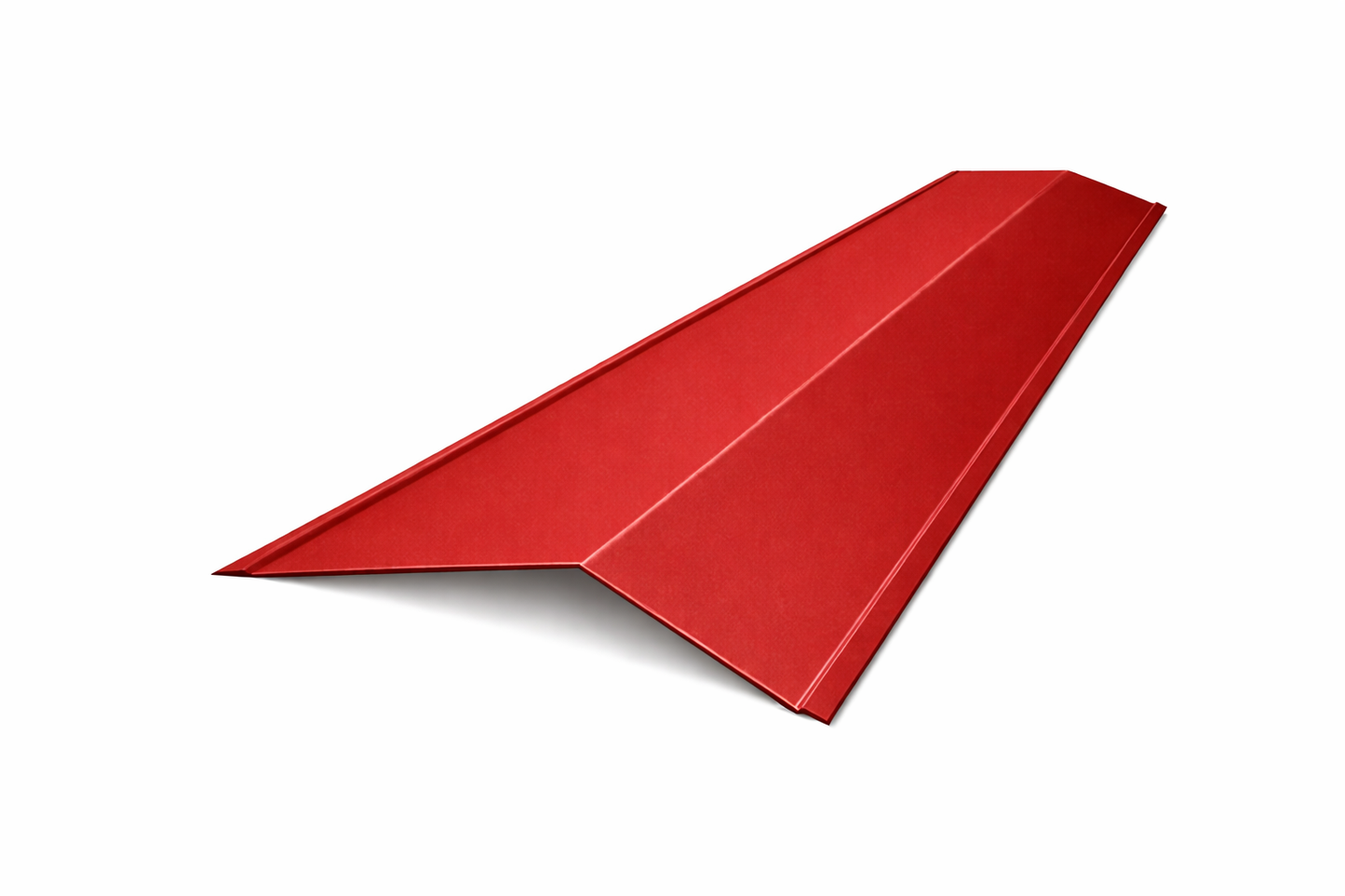

110° Abutment Flashings – Polyester Paint Finish – 3m (200mm x 200mm)

Premium 3m Abutment Flashings with Polyester Paint Coating

Our 3-metre Abutment Flashings are precision-formed from premium galvanised steel and finished with a hard-wearing Polyester Paint coat. Designed to create a neat, weathertight seal where a lean-to roof or extension meets an existing wall, these versatile flashings are an essential component of any profiled metal roof installation.

Each flashing is folded to a 110-degree internal angle and offers 10–15 degrees of flexibility, making on-site fitting straightforward even on slightly irregular structures. A 10mm safety welt runs along each edge, improving rigidity and ensuring safer handling during installation.

Key Features

• Manufactured from multi-layered galvanised steel for exceptional durability
• Smooth Polyester Paint finish – designed to last 20+ years in standard conditions
• 110° internal angle with 10–15° flex for easy installation
• Safety welt on all edges for strength and safe handling
• 3-metre length – allow 200mm overlap between consecutive flashings
• Fix with 22mm stitcher screws (sold separately)

Compatible with 13/3 Corrugated, 32/1000 Box Profile, and 34/1000 Box Profile roofing sheets.

Please note: The 200mm x 200mm profile provides 195mm x 195mm coverage due to the 5mm safety welt. A clear protective film is applied during manufacture – remove after installation or before prolonged exposure to sunlight or moisture.
