90° Corner Barge Flashings

Premium 3m Corner Barge Flashings with Polyester Paint Coating

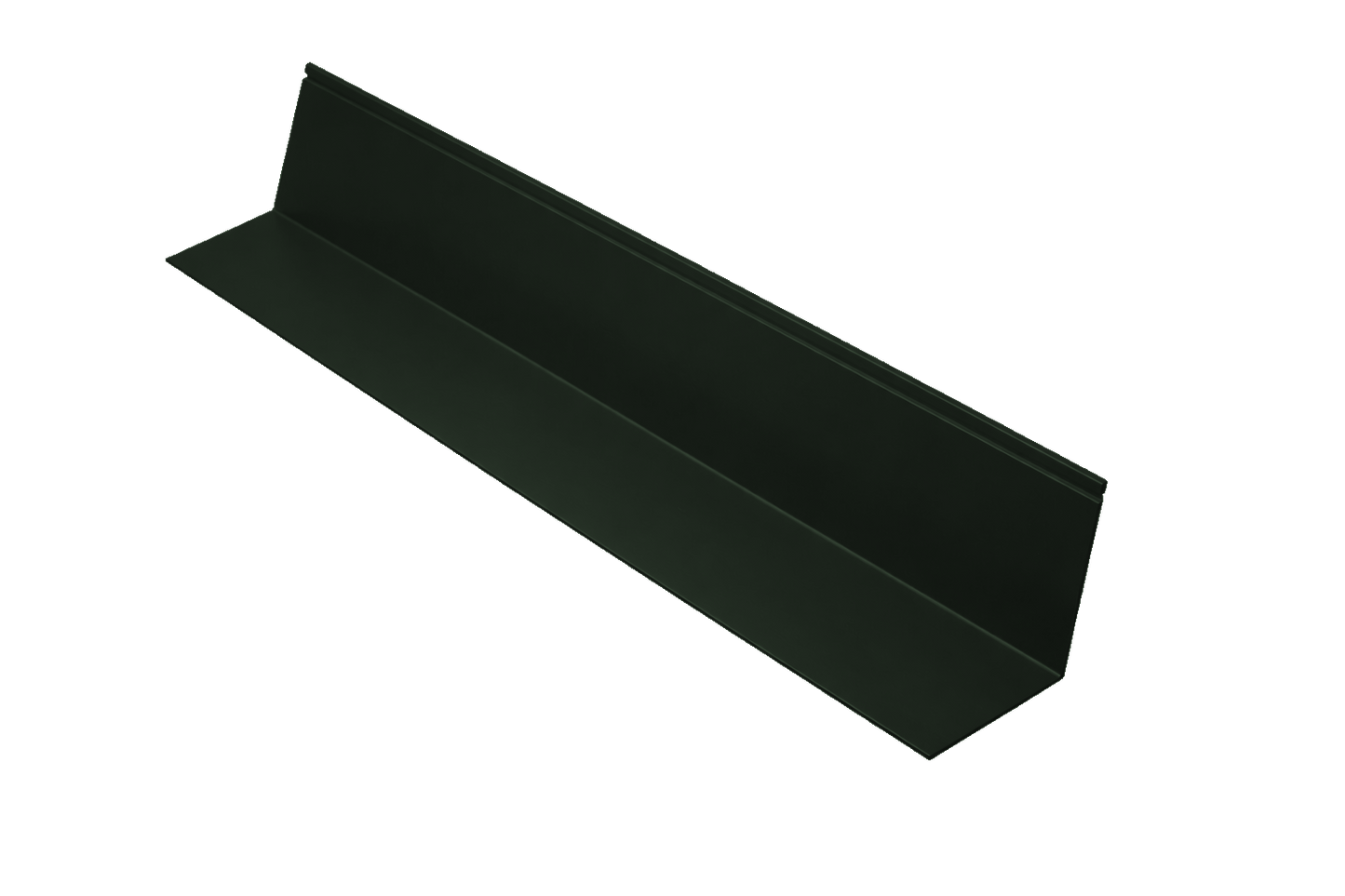

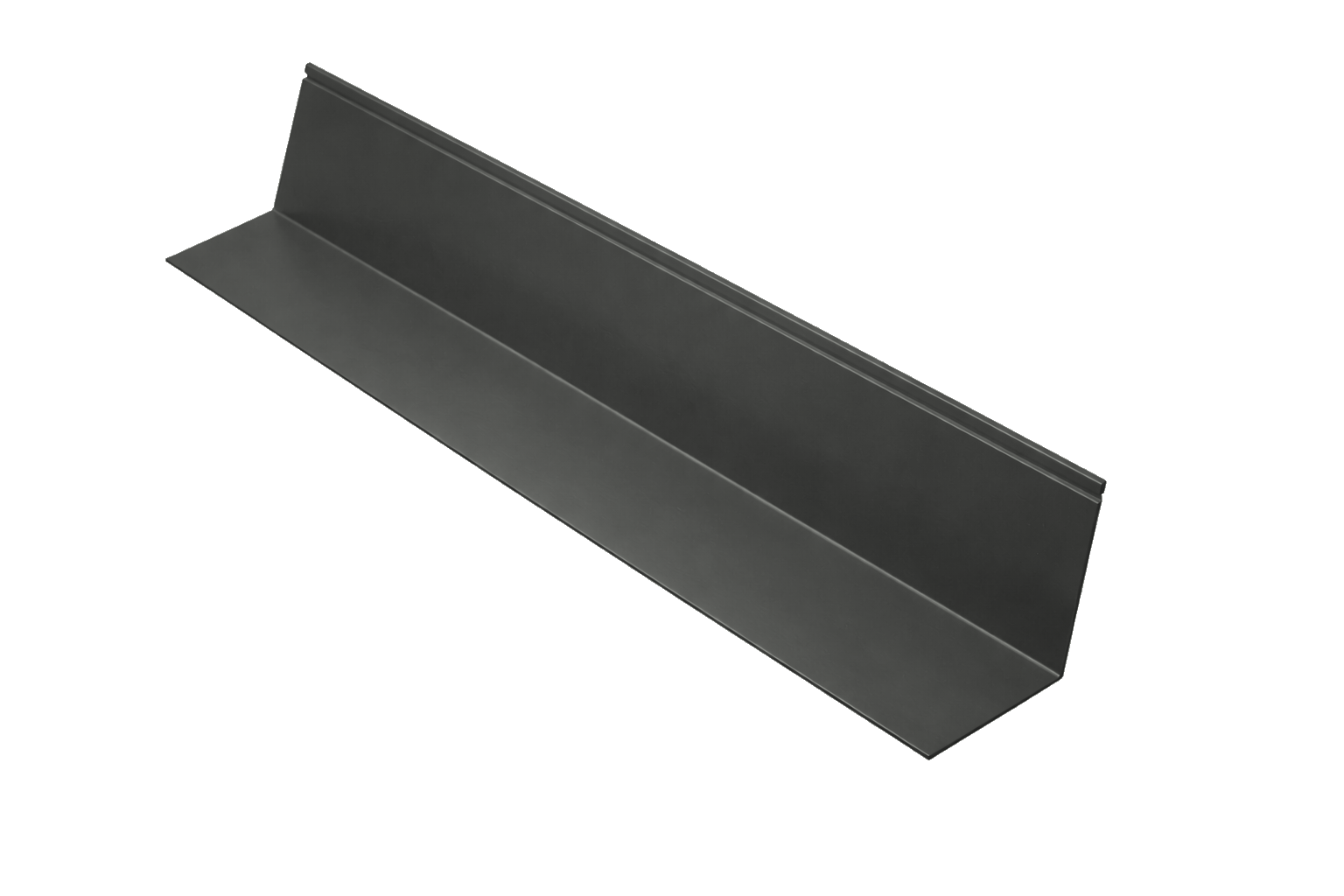

Our 3-metre Corner Barge Flashings – also known as Verge Flashings – are expertly formed from galvanised steel and finished with a professional-grade Polyester Paint coat. Used to trim and weatherproof the exposed edges of a profiled metal roof, these flashings deliver both functional protection and a polished, finished appearance.

Each flashing is folded to a 90-degree internal angle and offers 10–15 degrees of flex to accommodate slight variations during installation. A safety welt is formed along both edges for improved strength and safe handling on site.

Key Features

• Precision-folded galvanised steel for consistent quality
• Smooth Polyester Paint finish – long-lasting weather protection
• 90° internal angle with 10–15° flex for versatile fitting
• Safety welt on all edges for rigidity and safer handling
• 3-metre length – allow a minimum 100mm overlap between consecutive pieces
• Secure with 22mm stitcher screws (sold separately)

Compatible with 13/3 Corrugated, 32/1000 Box Profile, and 34/1000 Box Profile roofing sheets.

Please note: The 200mm x 200mm profile provides 195mm x 195mm of coverage due to the 5mm safety welt. A clear protective film is applied during manufacture – remove after installation or before prolonged exposure to sunlight or moisture to prevent adhesion.
