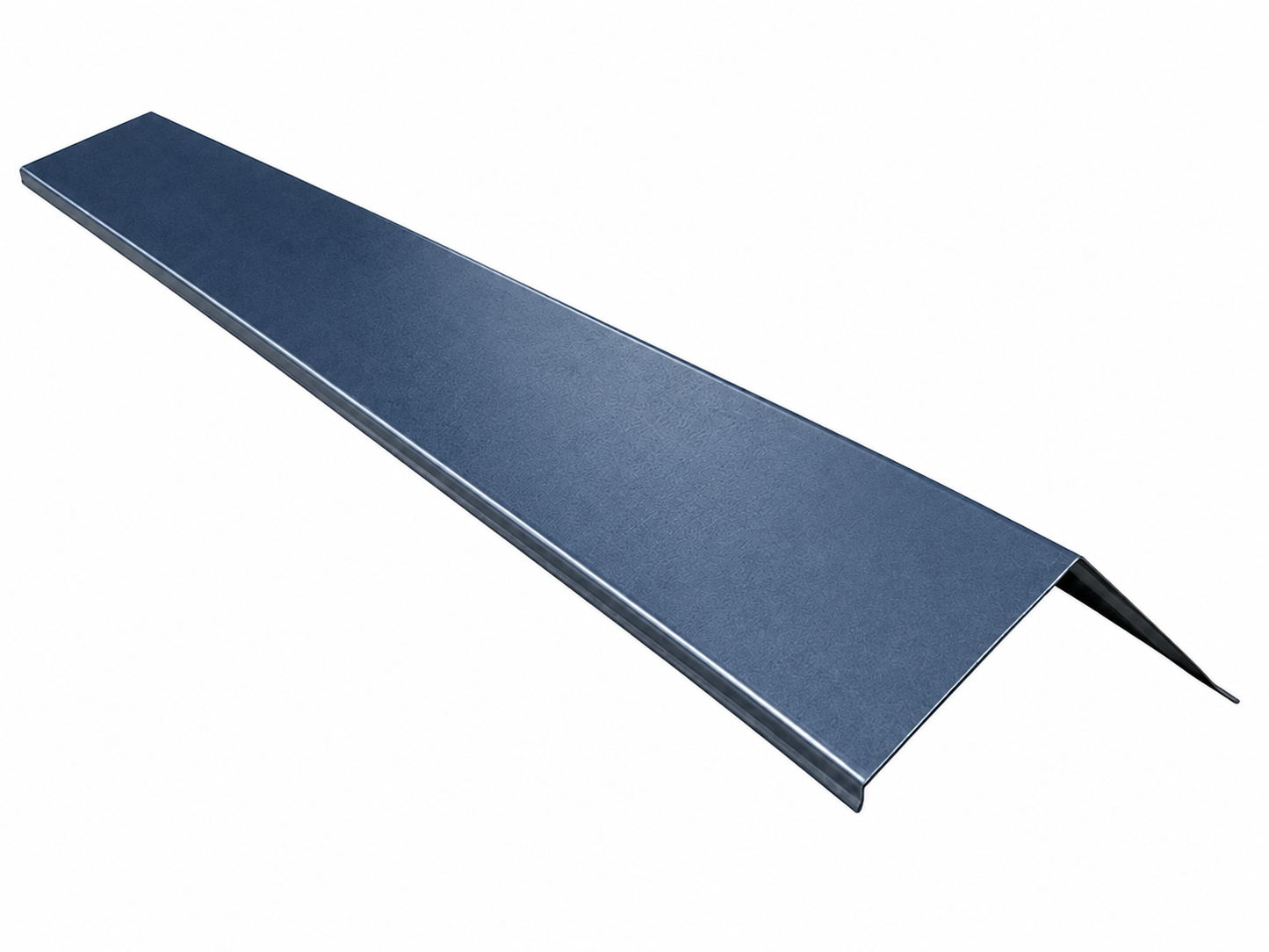

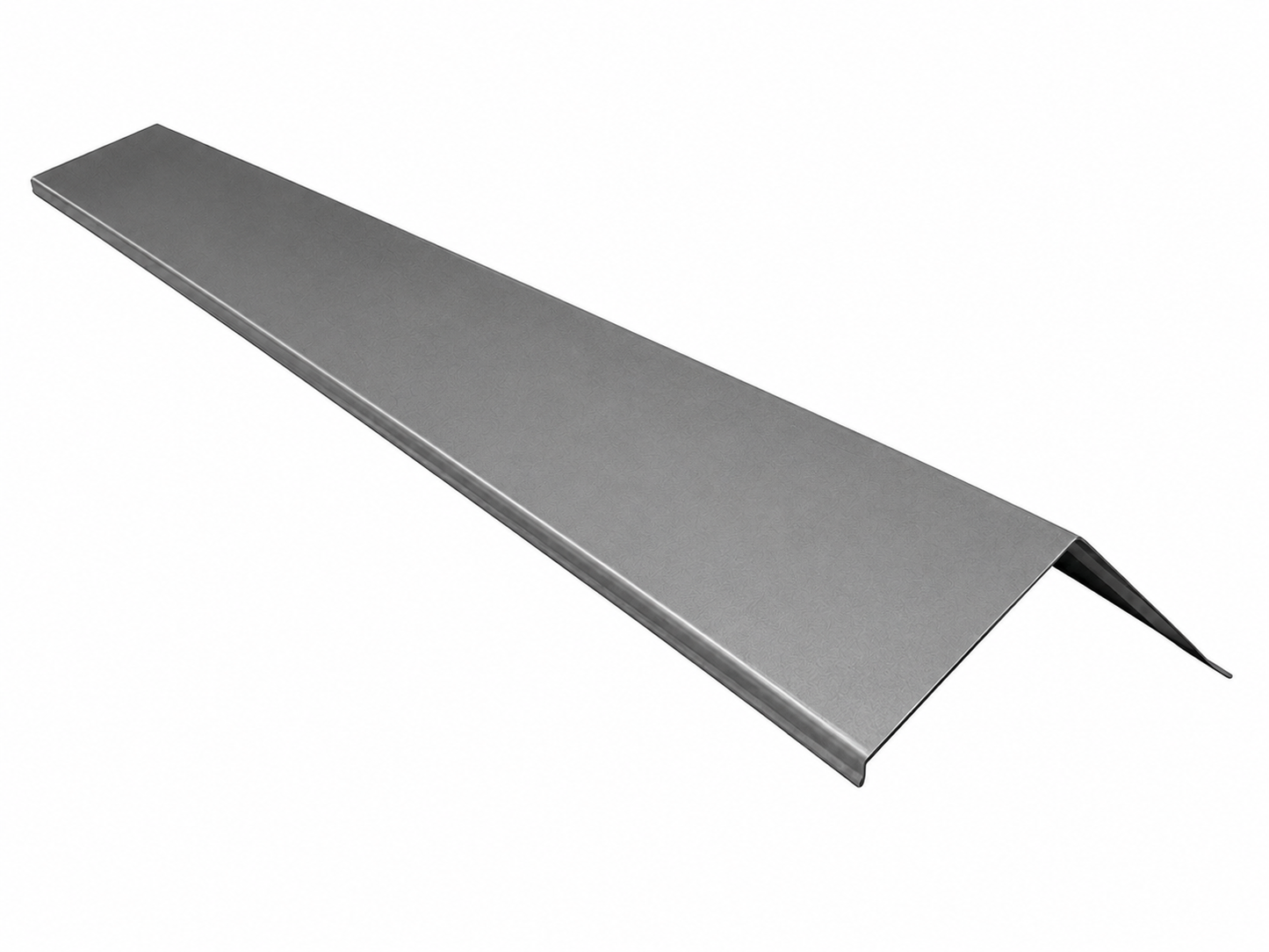

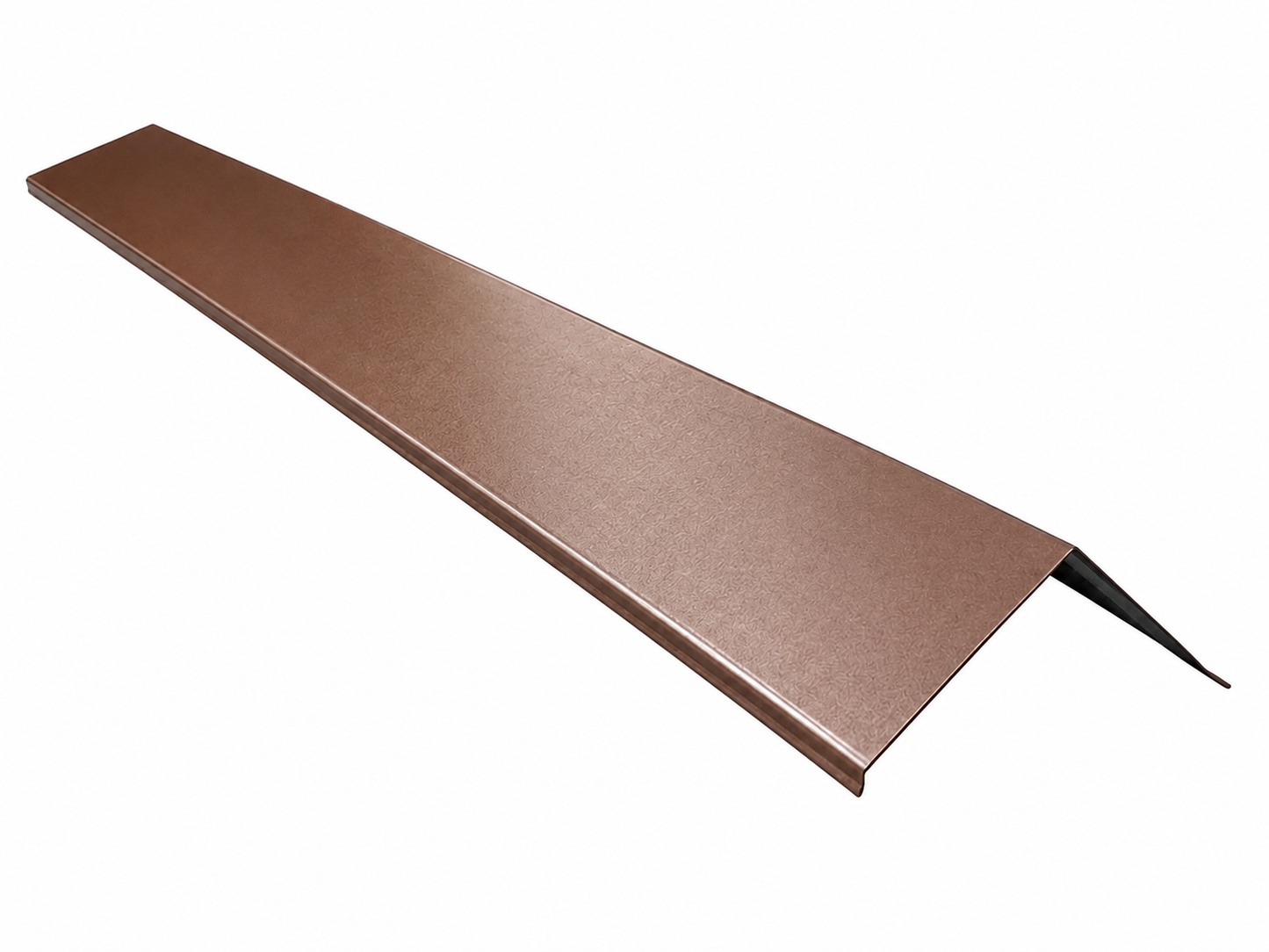

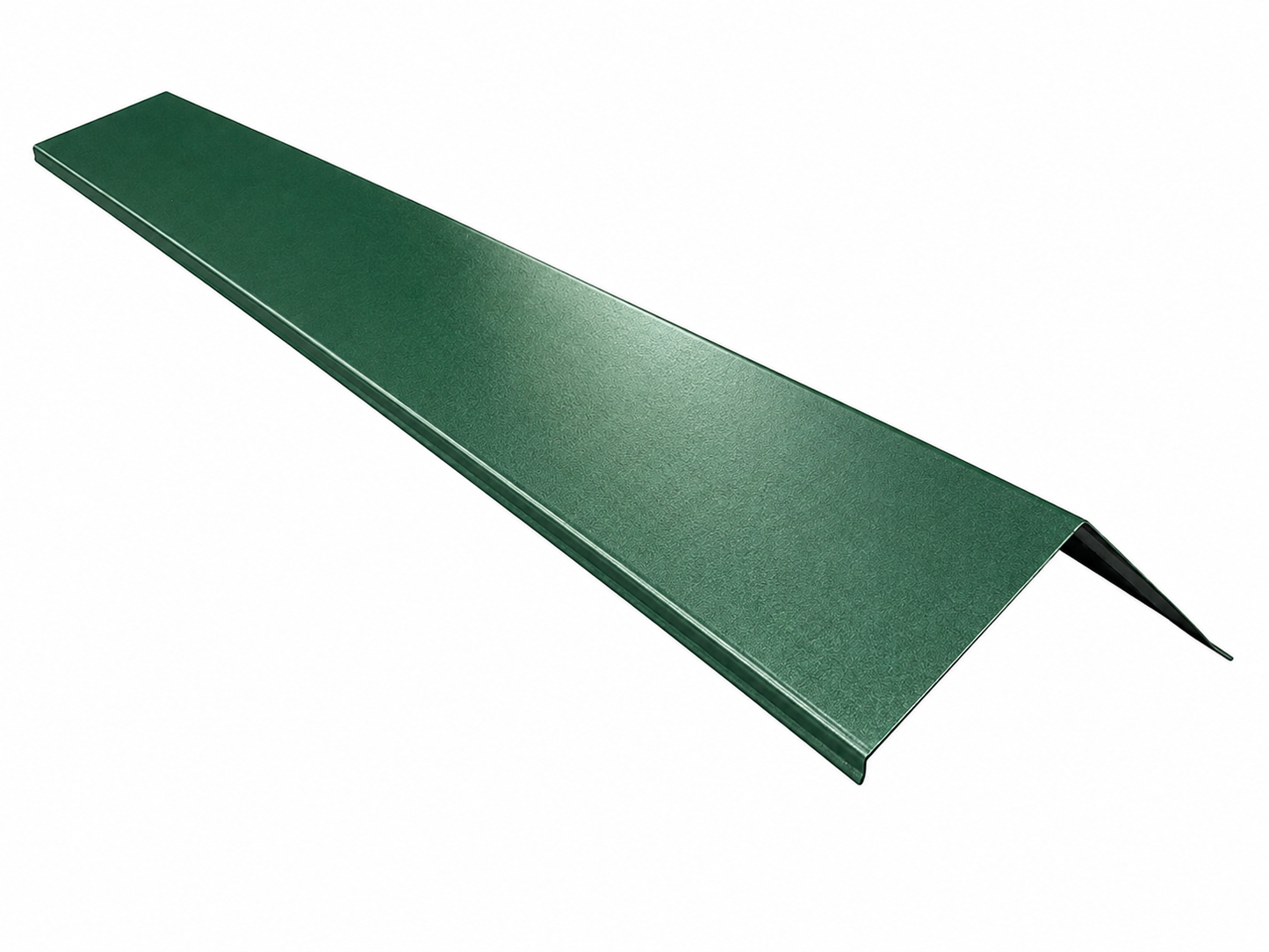

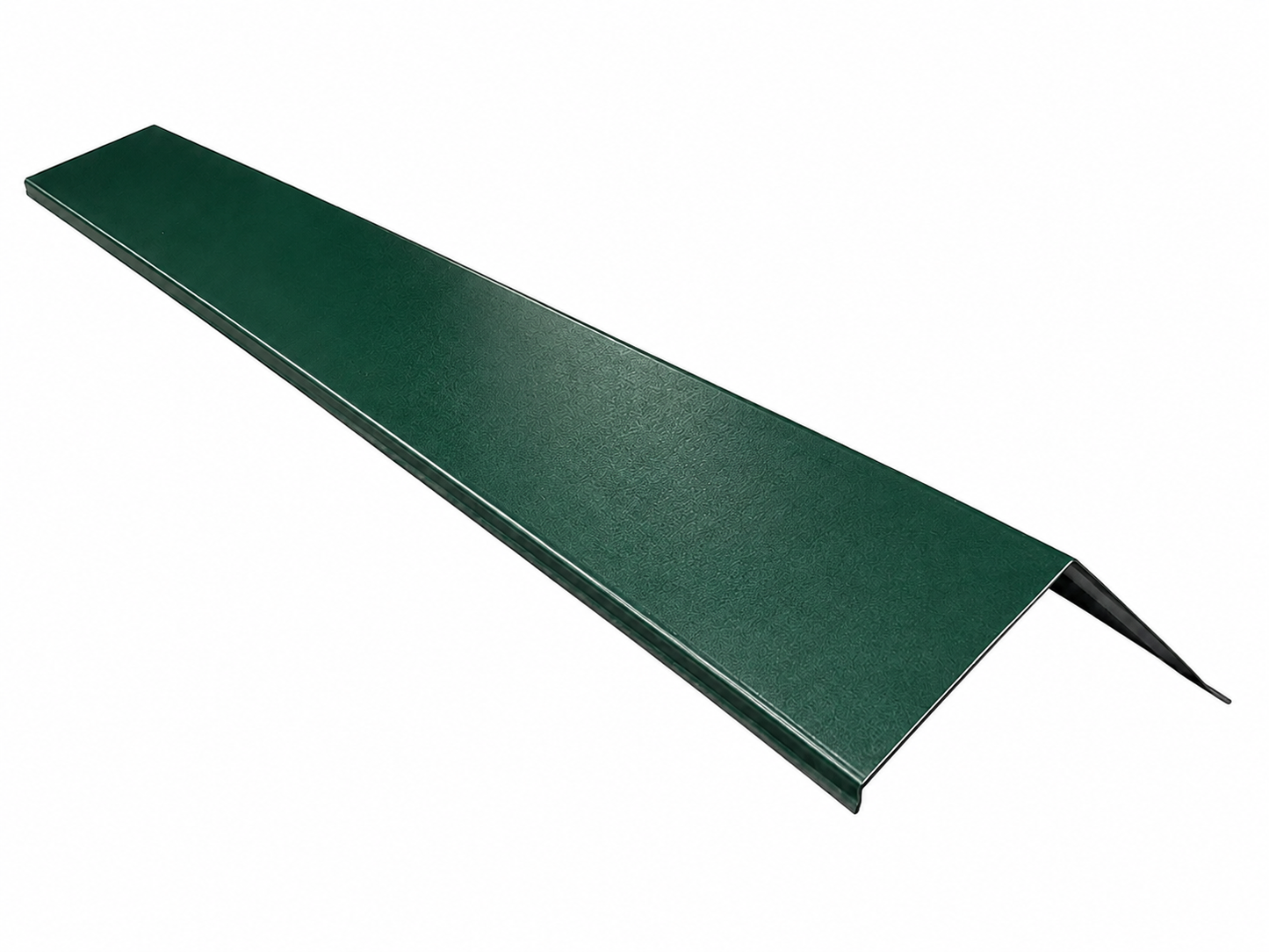

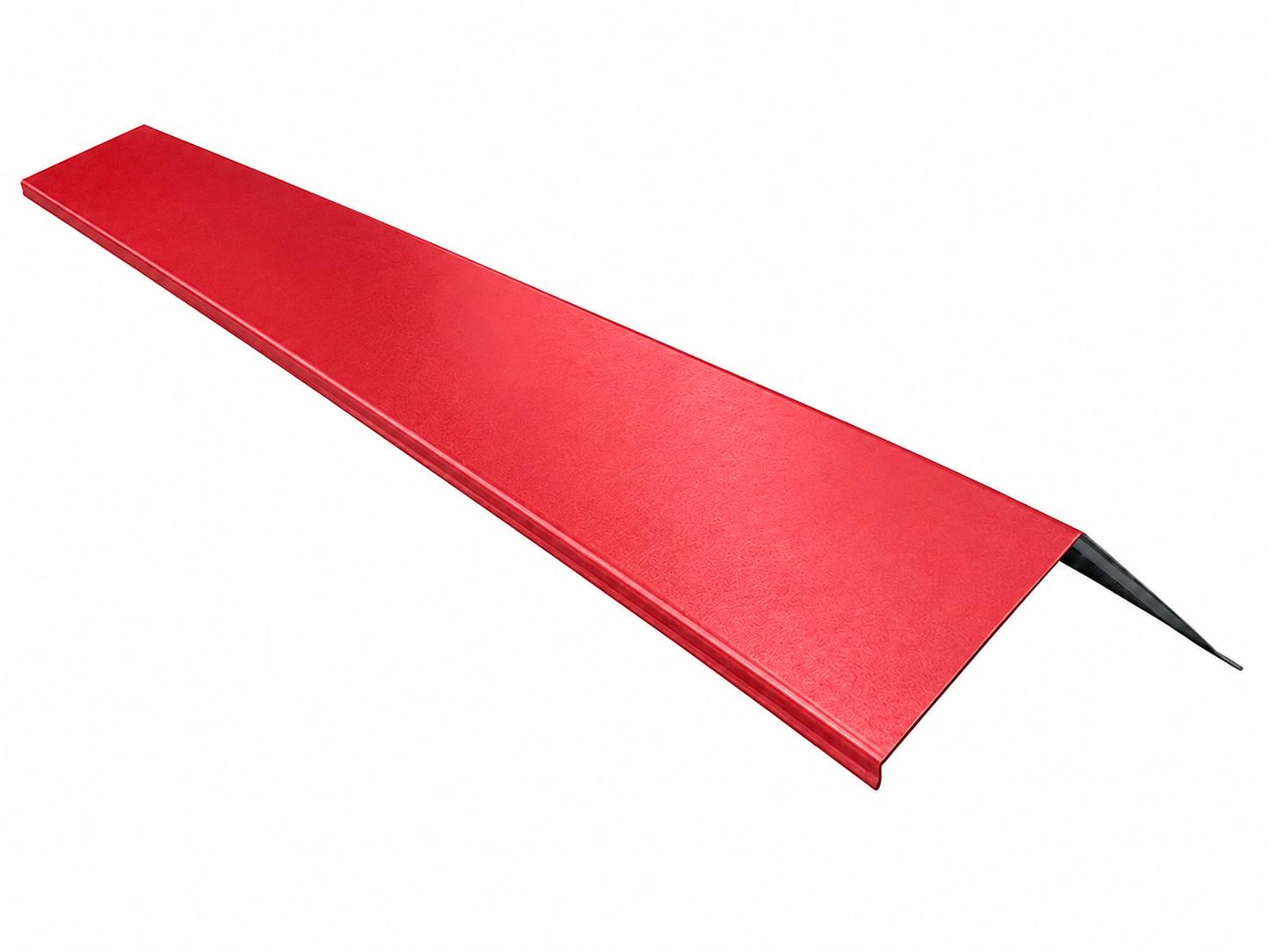

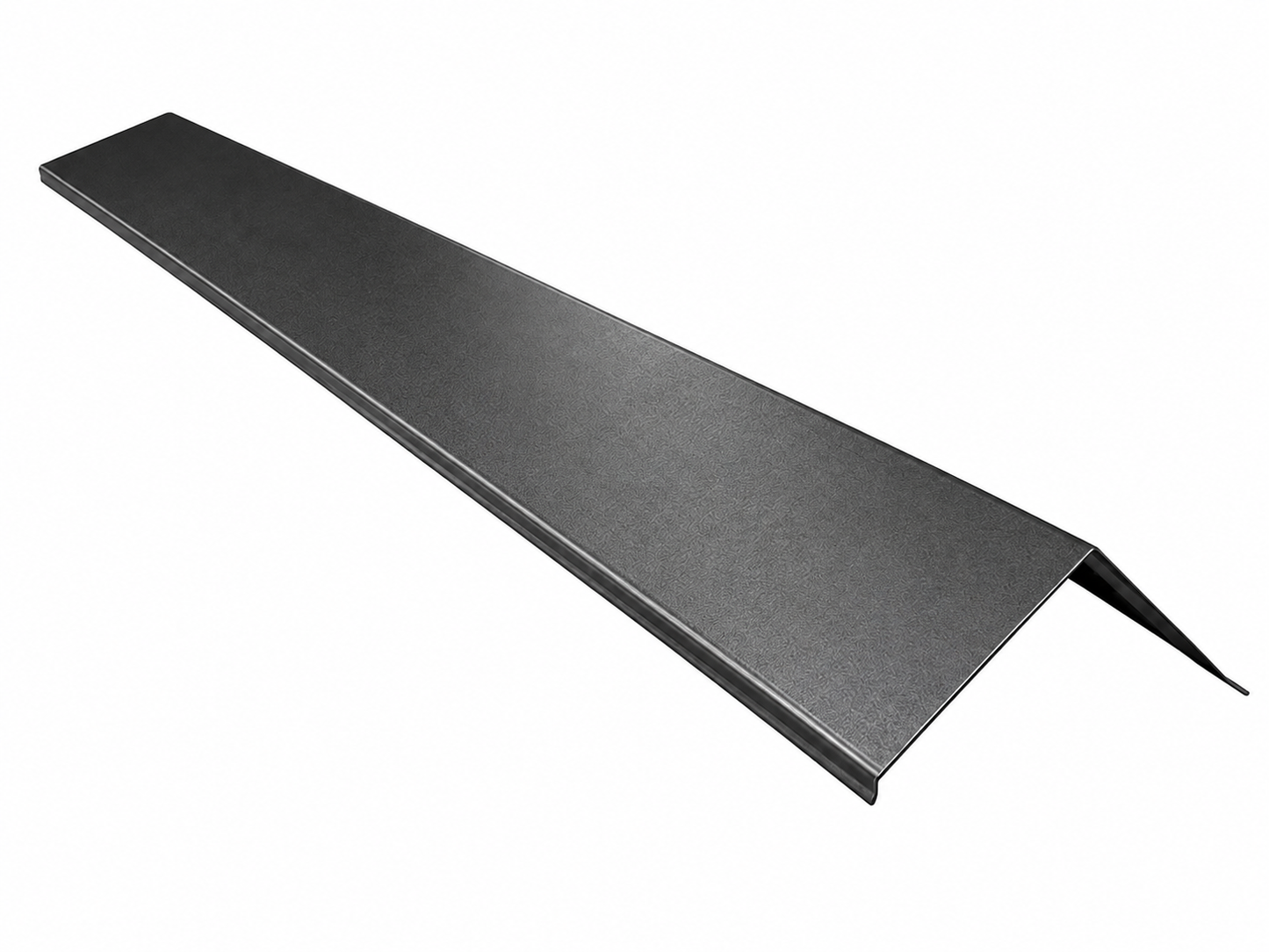

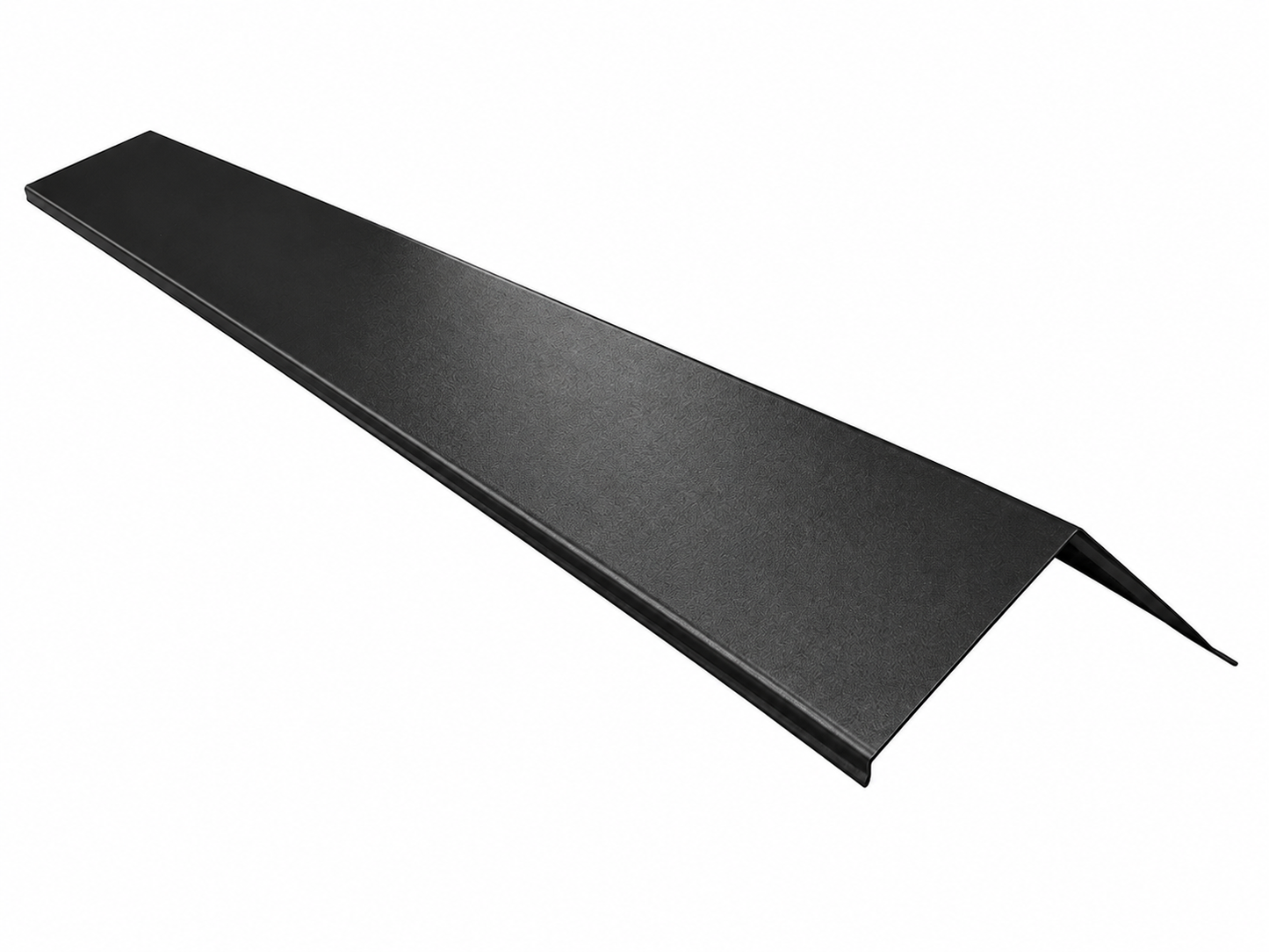

90° Corner Barge Flashings – Plastisol Paint Finish – 3m (200mm x 200mm)

Premium 3m Corner Barge Flashings with Plastisol Coating

Our 3-metre Corner Barge Flashings (also known as verge flashings) are precision-formed from galvanised steel and finished with a hard-wearing PVC plastisol coating. They trim and weatherproof the exposed edges of a profiled metal roof, sealing the ends of the sheet run against water, wind, and vermin while giving a clean, finished appearance.

Each flashing is folded to a 90° internal angle with around 10–15° of flex, so it adapts neatly on site. A safety welt along each edge improves rigidity and makes handling safer during installation.

Key Features

• Galvanised steel core with durable PVC plastisol finish
• 90° corner barge / verge profile for roof and cladding edges
• 10–15° flex for easier fitting
• Safety welt on all edges for strength and safer handling
• 3-metre length — allow a minimum 100–200mm overlap between consecutive pieces
• 200mm x 200mm profile for solid edge cover
• Fix with 22mm stitcher / tek screws into the sheet crowns (sold separately)

Compatible with 13/3 corrugated, 32/1000 box profile, and 34/1000 box profile roofing sheets.

Please note: Nominal size is 200mm x 200mm. Actual cover is approximately 195mm x 195mm once the safety welt is accounted for. A clear protective film is applied during manufacture — remove after installation, or before prolonged exposure to sunlight or moisture.

Need a different size or angle? We also manufacture bespoke barge flashings. Contact us or call 01912 853848.

Product photos coming soon — colour swatches match our standard plastisol range.
